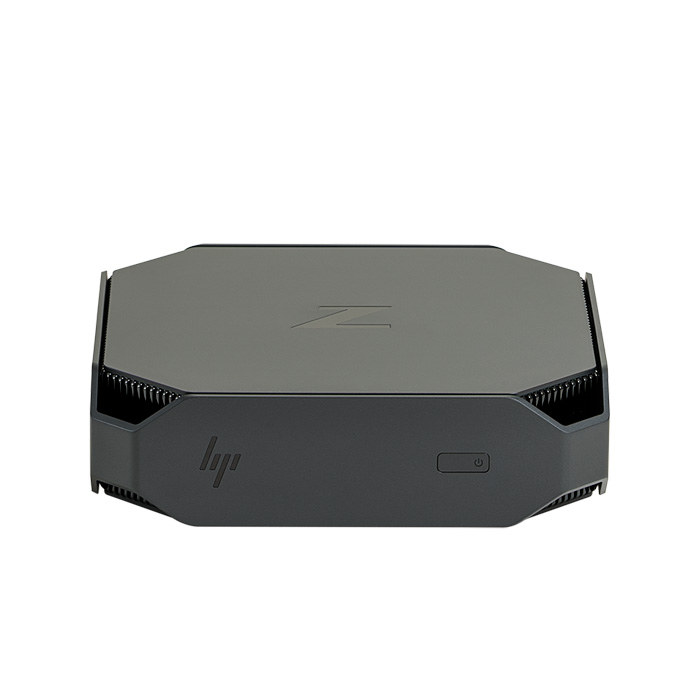

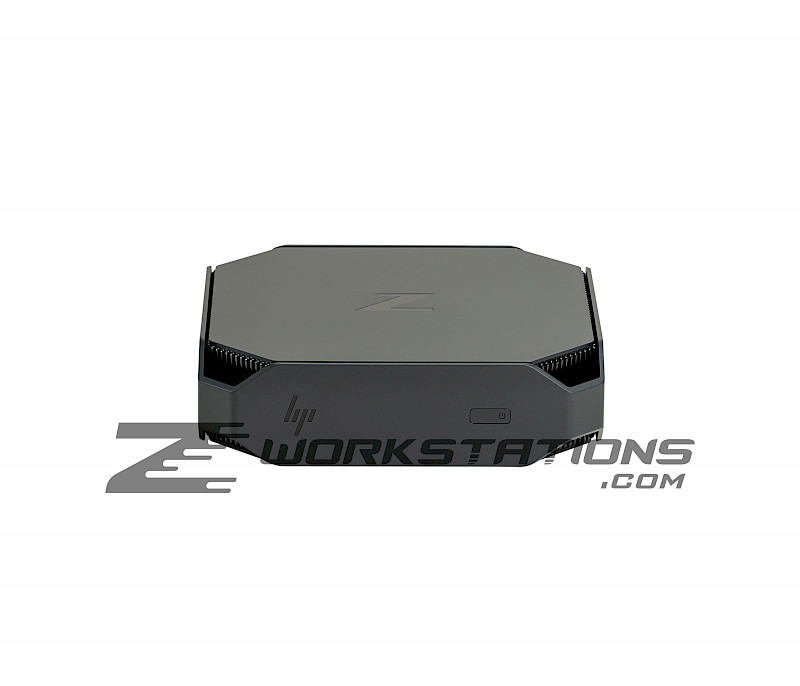

Configure Your HP Z2 G5 Mini Workstation

Name: HP Z2 G5 Mini
Brand: HP
Rating: 4.7 (92 reviews)
Author: Superworkstations.com

Configure
Processor

Memory

Storage | M.2

Storage | SATA

Graphics

WiFi / BT

OS

KB / Mouse

3Dconnexion

Processor

The HP Z2 G5 Mini has one LGA1200 processor socket supporting one Intel Xeon W-series or Intel Core i7/i9 processor. Multiple processor cores allow you to run multiple applications simultaneously and boost clock speeds up to 4.8 GHz increasing performance in both single-threaded and multithreaded applications.

Intel Core 10th Gen.

Intel Core i5-10500 (6 cores, 3.1GHz base, 4.5GHz turbo) $

Intel Core i7-10700 (8 cores, 2.9GHz base, 4.8GHz turbo) $

Intel Core i7-10700K (8 cores, 3.8GHz base, 5.1GHz turbo) $

Intel Xeon

Intel Xeon W-1250 (6 cores, 3.3GHz base, 4.7GHz turbo) $

Memory

The HP Z2 Mini G5 has 2 SO-DIMM Slots supporting up to 64GB DDR4 Memory. Core i7/i9 processors support UDIMM (unbuffered) memory. Xeon processors support ECC (error correcting) memory. Choose more memory to improve overall system performance.

16GB of 2933MT/s DDR4 Memory $

16GB of 2933MT/s DDR4 ECC Memory $

32GB (2x 16GB) of 2933MT/s DDR4 Memory $

32GB (2x 16GB) of 2933MT/s DDR4 ECC Memory $

64GB (2x 32GB) of 2933MT/s DDR4 Memory $

64GB (2x 32GB) of 2933MT/s DDR4 ECC Memory $

Storage | M.2 more info

The HP Z2 G5 Tower has 2 slots for M.2 NVMe SSDs. We recommend a NVMe SSD as the primary boot drive for the operating system and applications. A 2nd NVMe SSD can be added as a dedicated work drive for active projects files - CAD files, footage, photos, etc. NVMe M.2 SSDs perform at 2,500MB/s read and 2,000MB/s write.

M.2 Slot 1

M.2 Slot 2

500GB NVMe M.2 PCIe 3.0 Solid-State Drive $

1TB NVMe M.2 PCIe 3.0 Solid-State Drive $

2TB NVMe M.2 PCIe 3.0 Solid-State Drive $

4TB NVMe M.2 PCIe 3.0 Solid-State Drive $

8TB NVMe M.2 PCIe 3.0 Solid-State Drive $

None $

500GB NVMe M.2 PCIe 3.0 Solid-State Drive $

1TB NVMe M.2 PCIe 3.0 Solid-State Drive $

2TB NVMe M.2 PCIe 3.0 Solid-State Drive $

4TB NVMe M.2 PCIe 3.0 Solid-State Drive $

8TB NVMe M.2 PCIe 3.0 Solid-State Drive $

Storage | SATA

The HP Z2 G5 Mini has 1 slot for a 2.5-inch SATA SSD. You can select a SATA SSD for storage, backup, or project files. SATA SSDs perform at 550MB/s read and 500MB/s write.

None $

500GB SATA 2.5" Solid-State Drive $

1TB SATA 2.5" Solid-State Drive $

2TB SATA 2.5" Solid-State Drive $

4TB SATA 2.5" Solid-State Drive $

8TB SATA 2.5" Solid-State Drive $

Graphics

The HP Z2 G5 Mini supports one graphics card and has 3x DisplayPort 1.4 outputs.

Integrated Intel UHD Graphics 630 $ more info

NVIDIA Quadro P620 2GB $ more info

NVIDIA Quadro T1000 4GB Graphics $ more info

NVIDIA Quadro T2000 4GB Graphics $ more info

NVIDIA Quadro RTX 3000 6GB Graphics $

Wireless + Bluetooth

The Z2 G5 Mini comes standard with 1x RJ-45 1Gb Ethernet port and Wi-Fi 6E and BT 5.0.

Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) & BT 5.0 $

Operating System

Choose the operating system that best fits your application requirements.

None $

Windows

Windows 10 Professional 64-bit for Workstations $

Windows 11 Professional 64-bit for Workstations $

Linux Distributions

Ubuntu 24.04 LTS $

CentOS Stream 10 64-bit $ more info

Keyboard

Choose your keyboard.

None $

HP USB Keyboard $

HP Wireless Keyboard $

Mouse

Choose your mouse.

None $

HP USB Optical Mouse $

HP Wireless Optical Mouse $

3Dconnexion

None $

3Dconnexion USB CADMouse $ more info

3Dconnexion USB SpaceMouse Compact $ more info

3Dconnexion USB SpaceMouse Pro $ more info

3Dconnexion USB SpaceMouse Enterprise $ more info

3Dconnexion Wireless CADMouse Pro $ more info

3Dconnexion Wireless SpaceMouse $ more info

3Dconnexion Wireless SpaceMouse Pro $ more info

Condition more info

Refurbished $

Talk to a Specialist

(310) 916-4444

sales@superworkstations.com

Ships from Los Angeles, CA

Specifications

Save Configuration

Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.

Create Quote

Add your configuration(s) to your cart if you would like to create a personalized quote.

Configuration Help

Have more questions about your configuration? Need professional assistance? We are here to help!

Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 916-4444.
$50 shipping per unit · Free local pickup

Lead time: 1 to 2 weeks
See Policies & FAQ for details.

Quantity
$ 1,500

Manufacture Year(s)	2020 - current
Form Factor	Mini Portable PC Rackable - 7 per 5U
Processor Socket	LGA 1200
Processor Family	Intel Xeon W-1000 Processor Family Intel Core i7/i9 Processor Family
Processors	Intel Xeon W-1200 series processors Intel Core 10th Gen processors
Memory	2 SODIMM Slots 3200MHz DDR4 ECC RDIMMs (up to 64 GB) - Supported with Xeon W Series CPUs DDR4 Non-ECC UDIMMs (up to 64GB) supported with Core i7/i9 Series CPUs
Internal Storage	1x 2.5" (SATA) 2x M.2 2280 PCIe x4 (NVMe)
Audio	Realtek HD ALC221
Communications	Ethernet: 1 x RJ45 (Gigabit) Wi-Fi: Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) Bluetooth: 5.0

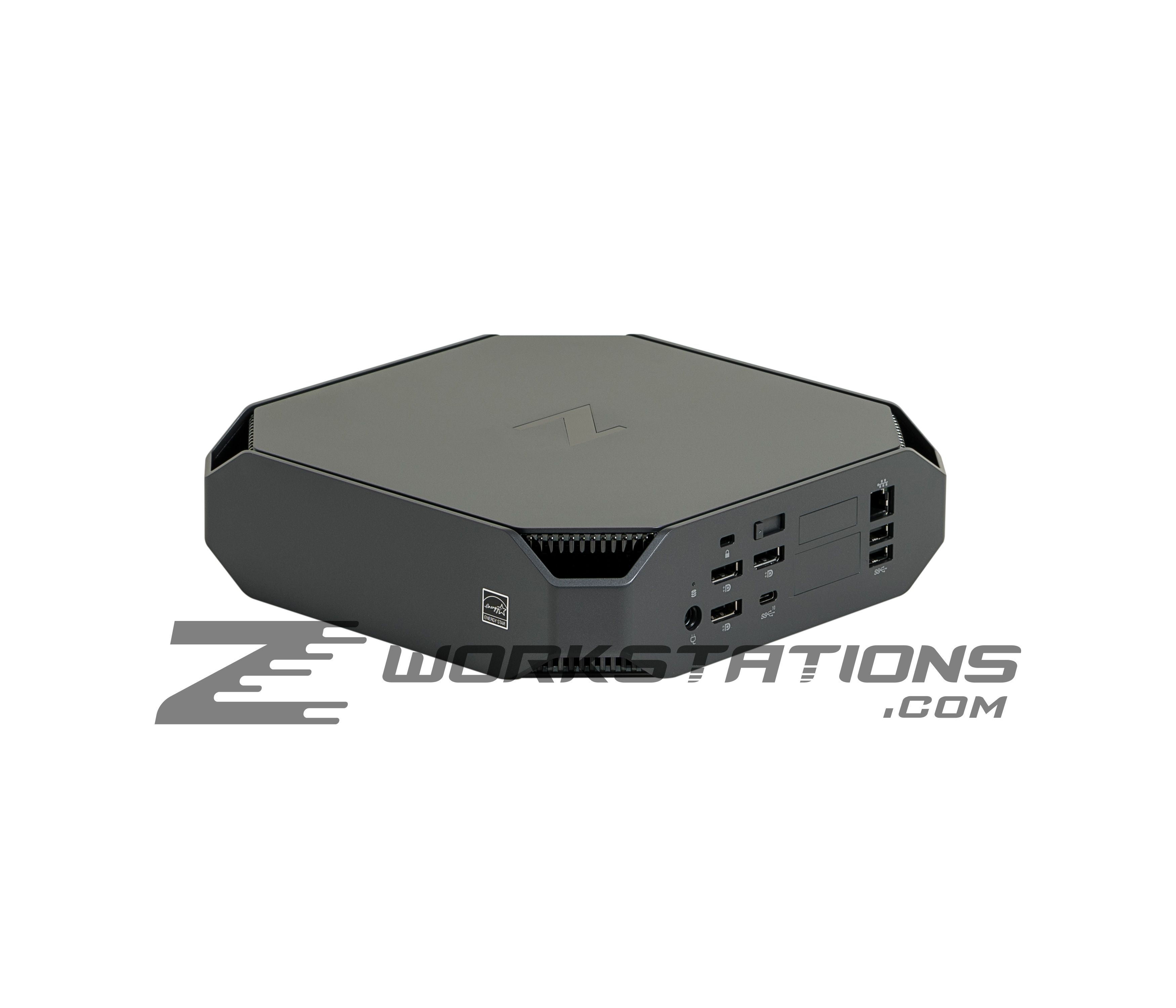

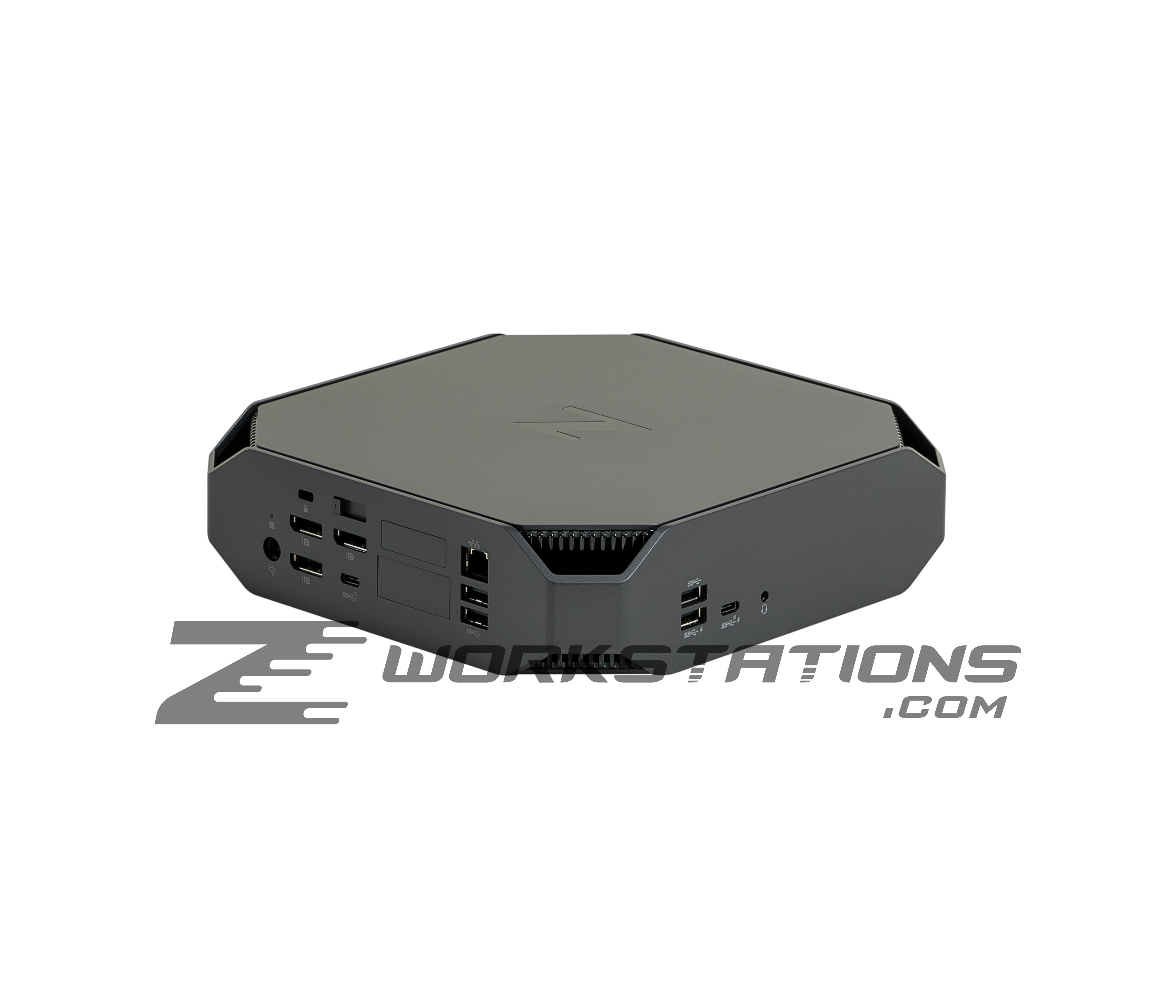

Ports and Connectors	4 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) 2 x USB 3.1 / USB 3.2 Gen 2 3 x DisplayPort 1.4 Output 1 x 1/8" / 3.5 mm Headphone/Microphone/Line Input/Output
Power	280 W power supply
Dimensions (W x D x H)	8.5 x 8.5 x 2.28" / 215.9 x 215.9 x 57.91 mm
Weight	4.6 lb / 2.1 kg

Documentation

Datasheet	View \| Download
Quick Specs	View \| Download
Maintenance and Service Guide	View \| Download
User Guide	View \| Download
